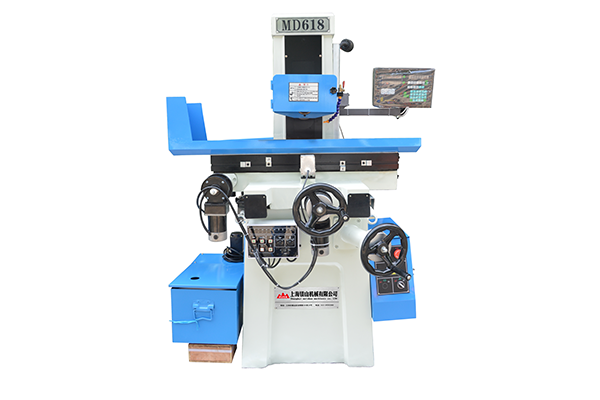

| technical specifications | unit | MD618 Electric surface grinder | |
| Longitudinal movement of workbench | mm | 500 | |
| Horizontal movement of workbench | mm | 190 | |
| Maximum distance from workbench to spindle center | mm | 335 | |
| Workbench slide | --- | --- | |
| Maximum bearing capacity of workbench | Kg | 200 | |
| Table top size (length× width) | mm | 460×180 | |
| T-slot of workbench | mm×n | 14×1 | |
| Workbench speed (stepless speed change) | m/min | 3~25 | |
| Front and rear hand wheel feed | mm | 0.02/grid 2.5/turn | |
| Front and rear automatic feed (stepless speed change) | mm | 0.5-20 | |
| Fast forward and backward feed | r/min | 144 | |
| Grinding wheel size; (Outer diameter× width× inner diameter ) | mm | 180×13×31.75 | |
| Spindle speed | 50Hz | rpm | 2850 |
| FM motor | 30-6000 | ||
| Total motor power | Kw | 1.29 | |
| Power of grinding head motor | Kw | 1.1 | |
| Parallelism of machined surface to base surface | mm | 00:00.0 | |
| Surface roughness | μm | Ra0.32 | |
| Total input power | w | 150 | |
| X-feeder output speed | Rpm | 0-225 | |
| X-feeder size | mm | 280×130×120 | |
| Y-feeder output speed | Rpm | 0-120 | |
| Y-feeder size | mm | 280×130×120 | |
| Front and rear automatic movement motor | Kw | 0.2 | |
| Left and right automatic feed motor | Kw | 0.2 | |
| Overall dimension of machine tool (length× width× height) | mm | 950X1100X1590 | |
| Box size (length× width× height) | mm | 1000X1150X1760 | |
| Gross weight and net weight | T | O.77、 0.67 | |
